Product description

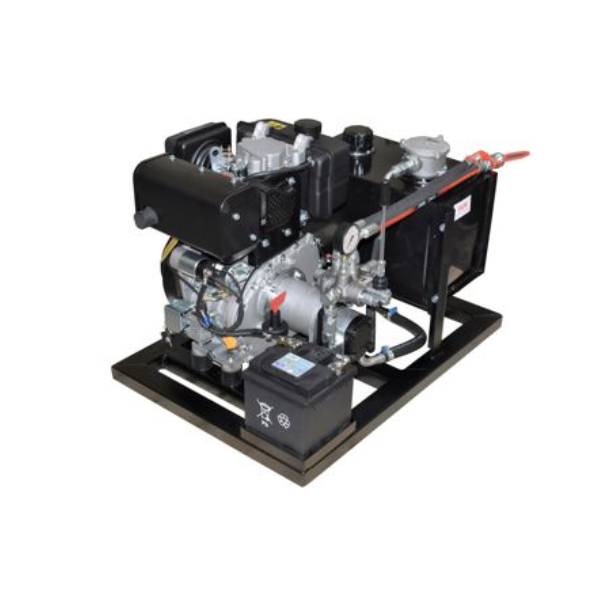

Compact and efficient diesel-powered hydraulic power unit, ideal for operating small hydraulic tools or similar equipment.
Equipped with a robust gear pump, this unit delivers reliable performance for mobile or stationary use.
Available in multiple configurations to match your needs — with options for maximum pressure, flow rate, and customizable tank sizes tailored to your specific application.
Components
- Diesel engine
- Gear pump
- Hydraulic tank
- All necessary fittings and couplings
Technical Description
-
Engine type: 1-cylinder, 4-stroke air-cooled diesel engine
-
Max. output: 10 HP
-
Displacement: 420 cc
-
Emission standard: Stage V
-
Starting system: Electric start (includes 12V charging coil)
-
Hydraulic pump: Gear pump
-
Max. continuous pressure: 110–250 bar
-
Engine oil alert: Yes
-
Hydraulic tank capacity: 30 liters
-
Weight (without oil): 200 kg
-
Dimensions: Length 100 cm, Height 64 cm
-
Noise level: 78 dB (approx. measured at 1-meter distance)
-
Connection P: ISO 7241 3/8" male BSP quick coupling
-
Connection T: ISO 7241 3/8" female BSP quick coupling
-
Battery: 35 Ah 12V
Configuration Options
The Diesel HPU can be configured to deliver the desired maximum flow and oil pressure.
It is also possible to customize the Diesel Power Pack with a larger tank, load-sensing valves, high-pressure filters, and more.
