Hydraulic Power Unit - 3 KW - 9 L/min 175 Bar
Product Description:

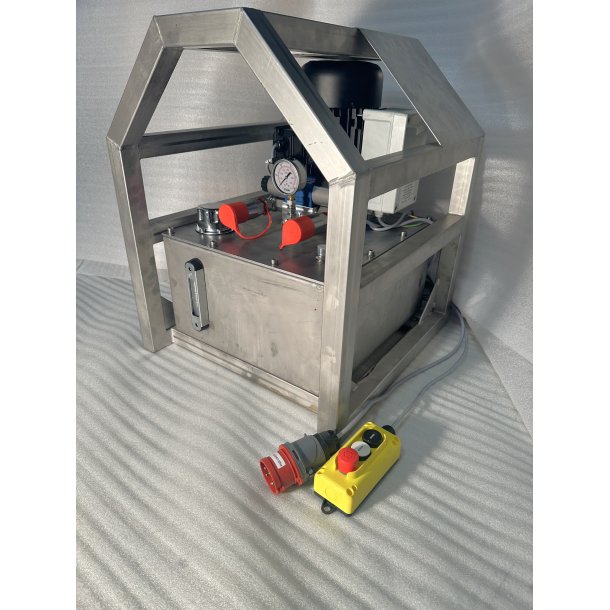

The HPU-33 is a hydraulic power unit designed for industrial applications where reliability and efficiency are essential. This unit combines an electric hydraulic power pack with a stainless steel tank that prevents corrosion-related leakage. This ensures stable and continuous operation and is ideal for environments where leakage cannot be tolerated, including offshore applications. The product is also equipped with a stainless steel protective frame to protect against impacts, and two 1/2" flat-face quick couplings for fast switching between tasks. With a maximum pressure capacity of 175 bar and a flow rate of 9 liters per minute, the HPU-33 is ideal for a wide range of applications requiring dependable hydraulics.
Technical Specifications:
Motor: 3 kW, 230/400 V AC (3-phase)
Control: 24 V DC
Pump: 3.7 cc/rev (gear pump)
Flow: 9 L/min
Maximum working pressure: 175 bar
Tank: 40 L stainless steel tank
Connections: Pressure: ½″, Return: ½″ (ISO16028F)
Additional features: Oil level indicator, drain plug
Dimensions: L: 560 mm, W: 530 mm, H: 640 mm
Weight: 71 kg
Configuration Options:
At Taon Hydraulics we offer custom-built solutions tailored to your specific needs and applications. Whether you require special flow and pressure demands, alternative tank sizes, specific valve configurations, remote control options or more, we can adapt your hydraulic power unit to fit your task precisely. Our experienced team is ready to assist from initial concept to final product. Contact us for a non-binding discussion about the possibilities.
